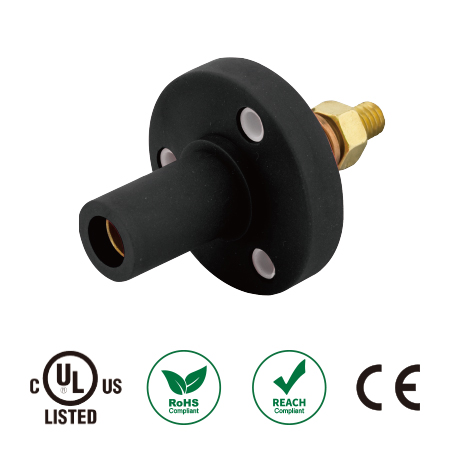

750A single-core connector
POWERFIT
接头颜色区分
The color of the connector distinguishes the type of the line, and different colors cannot be connected; only the same color can be docked to facilitate identification of the model and line.
橡胶握柄
Rubber handle is non-slip and comfortable, improves grip and makes connection easier.
强化安全保护
Strengthen safety protection: The guide needle has a hard plastic tip on its cover, which can effectively prevent accidental electric shock.
线止接头固定销
The wire stop connector is equipped with two fixing pins of different lengths (the outgoing connector is short and the incoming connector is long). For safety reasons, do not reuse the retaining pin.
The male and female seat fixing pin is 36 mm.

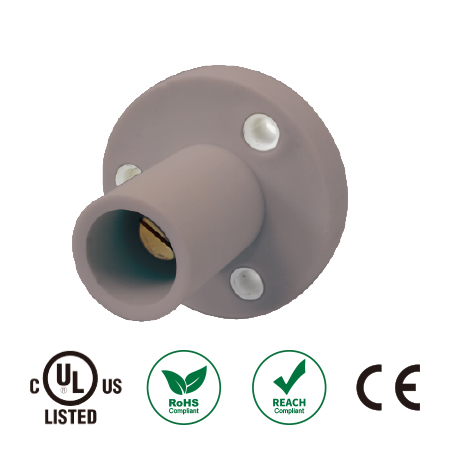

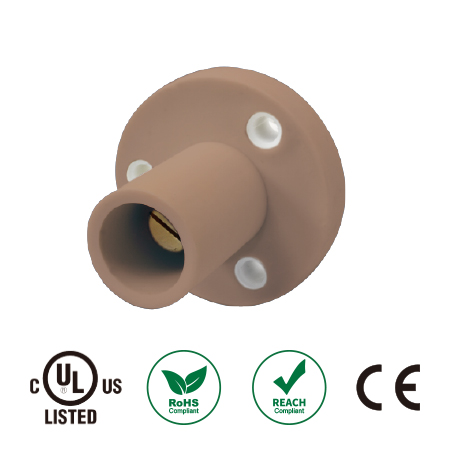

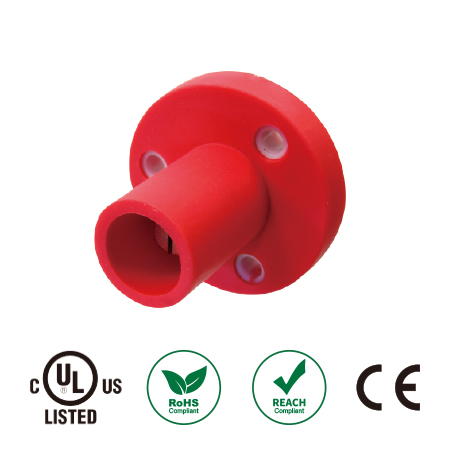

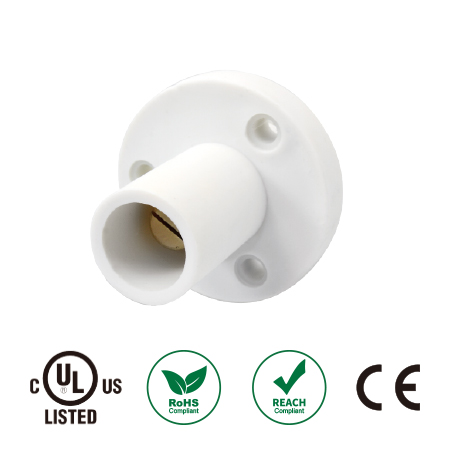

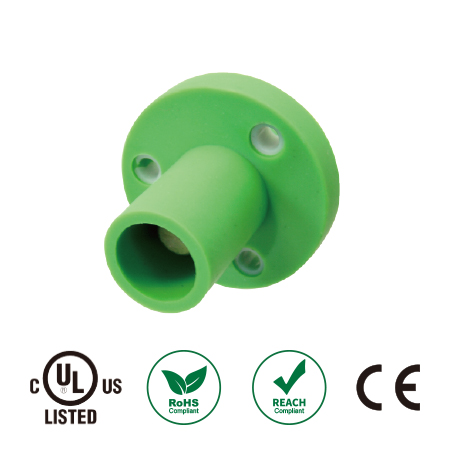

KUPO Powerfit series is available in four versions—European, Australian, British, and American.The color coding complies with local electrical standards, enabling easy identification and preventing misconnection.
International standard color of European connector:
Line 1 Line 2 Line 3 Neutral Ground
Europe & UK
Australia
UK (old)
U.S.A.
Powerfit Cable Gland
Standard Cable Gland
CG-M4015-32
描述
Compact Cable Gland
CG-M4015
描述
Optional：
M50 Cable Gland
CG-M5015-40
描述
Adapter Ring
CG-M40-M50
描述
Cable Gland Expansion Ring Application Diagram
描述

Line Source / Line Drain Diagram

Line Source (Male)
Line Drain (Female)
Panel Source (Male)
Line Drain (Female)
Line Source (Male)
Panel Drain (Female)
Powerfit Wiring Diagram
描述
<span style="font-size: 14px;">线缆规格表</span>

Cable specifications:

square number of single core Thread diameter (excluding sheath) Rated current range (A)
90mmsq 13mm 180-190A
120mmsq 14.4mm 240-280A
150mmsq 16.2mm 300-330A
185mmsq 18.2mm 410-550A
240mmsq 20.6mm 490-660A
300mmsq 23.4mm 560-750A
400mmsq 26.6mm 650-800A
Powerfit Cable Gland
Standard
Cable Gland
CG-M4015-32
描述
Compact
Cable Gland
CG-M4015
描述
Cable Gland Expansion Ring Application Diagram
描述
Adapter Ring
CG-M40-M50
描述
描述
M50 Cable Gland
CG-M5015-40
Optional：
Powerfit Copper Washer
Code Applicable Products Material Thickness

Outer

Diameter

Inner

Diameter

PF-750S-T5 Powerfit 750A 660A

Red Copper

5mm 24mm 12mm
编码适用产品材质厚度外径内径
PF-750S-T5Powerfit 750A / 660A紫铜5mm24mm12mm
CodeApplicable ProductsMaterialThickness

Outer

Diameter

Inner

Diameter

PF-750S-T5Powerfit 750A / 660A

Red

Copper

5mm24mm12mm
描述
描述
描述
Technical specifications:

Applicable current: 750A (adapted to 400mm² single core cable)

Rated voltage: 1000V AC / 1500V DC
Test voltage: 4500V
Short-circuit protection: Up to 35.5kA
Insulation resistance: > 5000 MΩ @500 V AC
Contact resistance: < 0.1 mΩ
Needle material: 750A copper silver plated
Shell material: Impact resistant flame retardant thermoplastic material
Operating temperature: -30 ° C ~ +125 ° C
Shell material: Impact resistant flame retardant thermoplastic material
Insertion and removal times: ≥ 500 times
Wire clamping torque: 10.5 N·m / meter (minimum value)
Flame retardant rating: UL94-V0
Protection level: (when plugged) IP67
Connection method:  hexagonal hydraulic wire presser, double screw cable fixation
Europe & UK
Line Source
Line Drain
Panel Source
Panel Drain
Australia
Line Drain
Line Source
Panel Drain
Panel Source
UK（old)
Line Source
Line Drain
Panel Drain
Panel Source
U.S.A.
Line Source
Line Drain
Panel Source
Panel Drain
